Introduction

Nowadays, because of the increased demand for esthetics from patients, the use of resin composites has increased for posterior teeth restoration [ 1 ]. For success of composite restorations, creating a durable bond between composite resin and dental structure is essential [ 2 ]. Although the strength of the bond to the enamel is stable over time, this is not true for dentin, which has reported to be decreased 30-40% after 6 months and 60-70% after 1 year [ 3 ].

In most studies, bond integrity has been investigated in short periods, such as after 24 hours. Several studies have investigated the durability of resin and dentin bond after long-term storage in water, which resulted in a reduction in bond strength after 6 months immersion in water [ 4 ]. The researchers believe that the reduction of bond strength over time is due to the hydrolysis of adhesive resins and the activity of collagenases [ 5 ].

Endogenic matrix metalloproteinases (MMPs) are activated after the use of the acid etchant, followed by the hydrolysis of the hybrid layer collagen, which cause decrease in bonding durability [ 6 ]. Therefore, the use of a substance that has the ability to inhibit MMPs is valuable to maintain bond strength over time [ 7 ]. Materials such as chlorhexidine, Gluma, EDTA, tetracycline and quaternary ammonium salts, such as 12-methacryloyloxydodecyl pyridinium bromide, have this ability [ 7 - 9 ].

The effect of chlorhexidine 2% on dentin bond strength and reduction in the degradation of hybrid layer over time (6 months of aging) was reported [ 10 ]. Unfortunately, chlorhexidine is water-soluble [ 11 ] and is not copolymerized with resin .It is washed away from the inside of the hybrid layer during one to two years, resulting in collagen degradation. It has been reported that the protective effect of chlorhexidine on the bond remains for up to nine months, and after 18 months, this effect has not been seen [ 3 ].

Gluma adhesives are the first bonding agents containing organic compounds of aldehyde. Gluma contains 5% glutaraldehyde and 35% HEMA (hydroxyethylmethacrylate) and has antibacterial properties .It is used as a substance to reduce post-operative sensitivity [ 3 , 7 ]. Applying Gluma (Gluma desensitizer liquid) for 60 seconds on etched dentin surface has been reported to inhibit 86% of endogenous MMPs(by cross-linking of MMPs molecules), which increases the stability of the resin-dentin bond in vivo [ 3 ].

To benefit from the desired properties of chlorhexidine and Gluma simultaneously, in this study a new compound containing chlorhexidine and Gluma in ethanol solvent has been investigated. The purpose of this study was to evaluate the effect of this new material on the shear bond strength and bond durability of composite restorations.

Materials and Method

In this experimental study, 120 extracted non-carious human premolar teeth (due to orthodontic treatment) were collected. They were cleaned and disinfected with 0.5% chloramine-T solution (Fisher chemical; Fair lawn, NJ, USA) and then stored in distilled water at 4° C in accordance with ISO 11405. The one-third of coronal crown of all teeth were sectioned horizontally (perpendicular to the long axis of the tooth) using water-cooled low-speed saw (Isomet, Buehler Ltd, Evanston, IL, USA), to expose dentin. Then, by using a 600-grit silicon carbide abrasive paper (Snam Abrasives Pvt. Ltd., India) the surfaces were polished.

The teeth were then randomly divided into four groups, three experimental groups and one control group. Table 1 displays the data concerning the manufacturer as well as the composition of all materials used in this study. In the control group, no surface treatment was used. In all groups, acid etching (FGM, Brazil) was applied for 15 seconds then washed and blot dried. In all experimental groups, surface treatment materials were applied after etching and before bonding.

In the first group (CHX group), chlorhexidine 2% (CHX, PPH CERKAMED Wojciech Pawlowski, Poland) was applied on etched dentin surface for 60 secon-ds with microbrush, the excess was removed gently. In the second group (NM group), new material (NM) containing 35% HEMA, 5% glutaraldehyde, and 2% chlorhexidine(all dissolved in ethanol) was applied on etched dentin surface for 60 seconds with microbrush and the excess was removed with blot dry technique. The method of production of this new material is described later in this section.

In the third group (GD group), Gluma desensitizer (GD, Heraeus Kulzer, South bend, Indiana) was applied on etched dentin surface and after 30 seconds and the excess was removed gently with tissue paper, leaving the surface visibly wet. The bonding used for this study was Ambar (FGM, Brazil, total-etch system) and was applied according to manufacturer instruction.

The bonding was applied in all groups, then the bonded surfaces of the samples were polymerized with LED light-curing unit (Bluedent LED smart, Bulgaria) at 1200 mW/cm2 intensity, controlled by a radiometer (RD-7, Paulo, Brazil) according to manufacturer instruction. Then a cylindrical mold (height: 3mm & diameter: 3mm) was placed and fixed on the smooth dentin surface using sticky wax while the specimens were carefully isolated. Then the composite (Dentin A₂ shade, FGM, Brazil) was placed incrementally (each increment was 1.5mm) in the mold using a suitable condenser, and each layer was cured for 40 seconds at 1200 mW/cm2 light intensity (Figure 1). Subsequently, half of the teeth in each group separated for immediate shear bond strength (SBS) measurement and were stor-ed in distilled water for 24 hours at room temperature. The SBS of these samples was measured in a universal testing machine (STM-20, SANTAM, Iran).

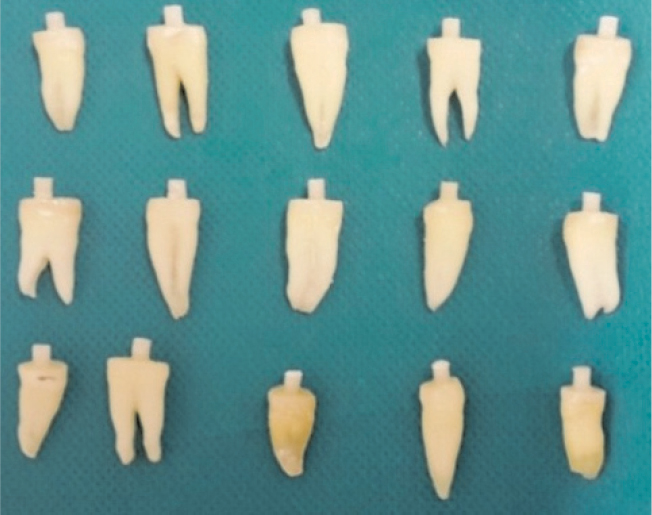

Figure 1. Sample preparation

The specimens were subjected to force at the tooth-composite interface, parallel to the bonded surface, utilizing a stainless steel rod with a sharp blade of 2.5 mm diameter at the speed of 0.5 mm/min until fracture occurred (Figure 2). The remaining specimens were stored in distilled water at room temperature for 6 months, then placed in a thermocycler machine and subjected to 5000 cycles (5°C and 55°C with 15 seconds of dwell time for each bath and 15 seconds of transfer time). It should be noted that based on previous studies, every 10,000 cycles are equivalent to one year of aging [ 12 ]. Then SBS of these specimens were measured with universal testing machine, as previously described.

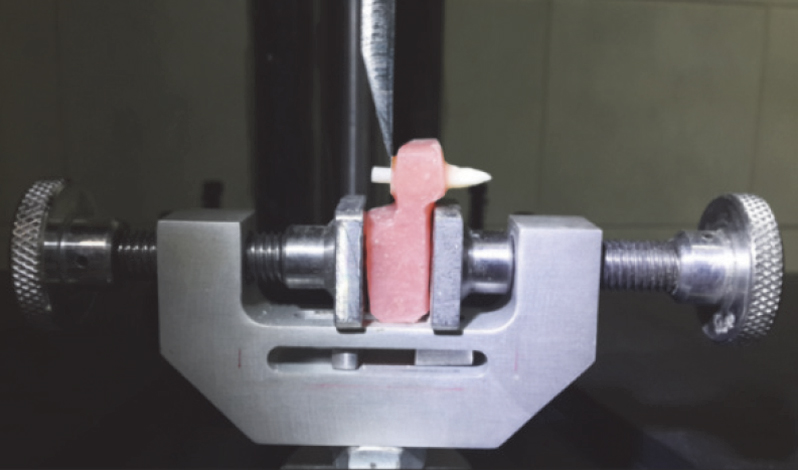

Figure 2. Evaluation of samples in terms of shear bond strength

The samples were examined under a stereomicroscope (Olympus DF Plapo 1X, Japan) at 20X magnification to evaluate the type of fracture. Types of fracture are define as (1) adhesive, when more than 90% of the bonded surface between the dentin and the composite resin was fractured; (2) cohesive, when more than 90% of the fracture occurred in either the dentin or the composite resin, and (3) mixed, when both adhesive and cohesive types have occurred.

For statistical analysis, all data were analyzed using SPSS software version 22 with descriptive statistics of mean and standard error. One-way ANOVA inferential test and Tukey's post-hoc test was performed for SBS. Chi-Square tests were used to analyze the failure types. A significant level of 0.05 was used for all tests.

New material production method

To prepare 25ml of a solution containing glutaraldehyde 5% and HEMA 35% and chlorhexidine 2%, the amount of 7.7ml of standard solution of HEMA with purity of 97% and 3.9ml of purified glutaraldehyde 25% with 2ml of 2% chlorhexidine were mixed. To investigate the chemical reaction of these materials, each solution was first separately detected in an ultraviolet–visible spectrophotometer (UV/VIS Spectrometer lambda 25, PerkinElmer, USA), and the wavelength-absorption diagram of each substance alone was recorded. Then the mixture of three substances was placed in the device and a mixture diagram of these substances was recorded. It should be noted that all stages of construction of new material were carried out by an experienced pharmacist.

Results

The mean SBS of composite to dentin in different groups after 24 hours is demonstrated in Table 2, Figures 3 to 4. Statistical analysis showed that SBS difference between groups was not significant (p> 0.05) and the highest SBS was observed in the NM group and the lowest in the control group. The mean SBS after 6 months has been demonstrated in Table 3, Figure 5, and Figure 6. The difference in SBS between groups was significant (p= 0.001). Multiple comparison between the groups using the Tukey post hoc test (Table 4) showed that SBS has a significant difference in the NM group with the control group (p= 0.001) and the CHX group (p= 0.01), but there was no significant difference with GD group (p= 0.19).

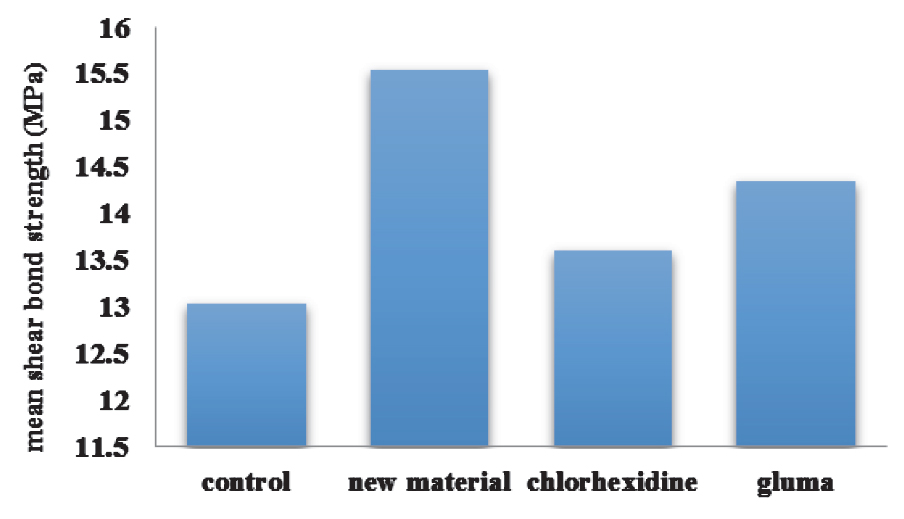

Figure 3. Mean shear bond strength of groups after 24 hours

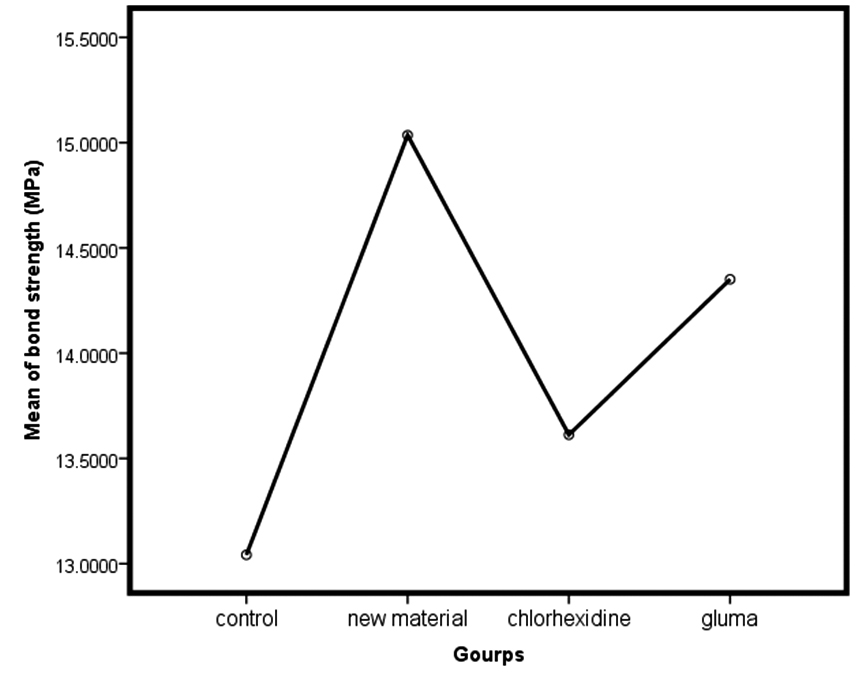

Figure 4. Mean shear bond strength of groups after 24 hours

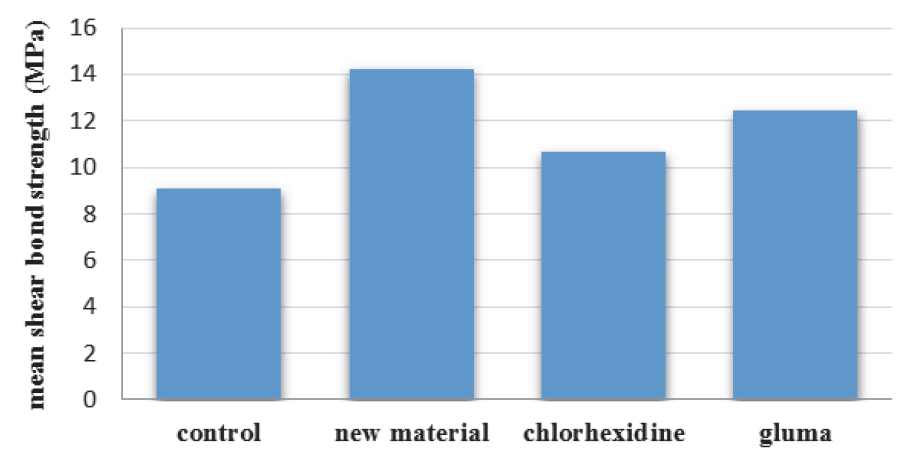

Figure 5. Mean shear bond strength of groups after 6 months

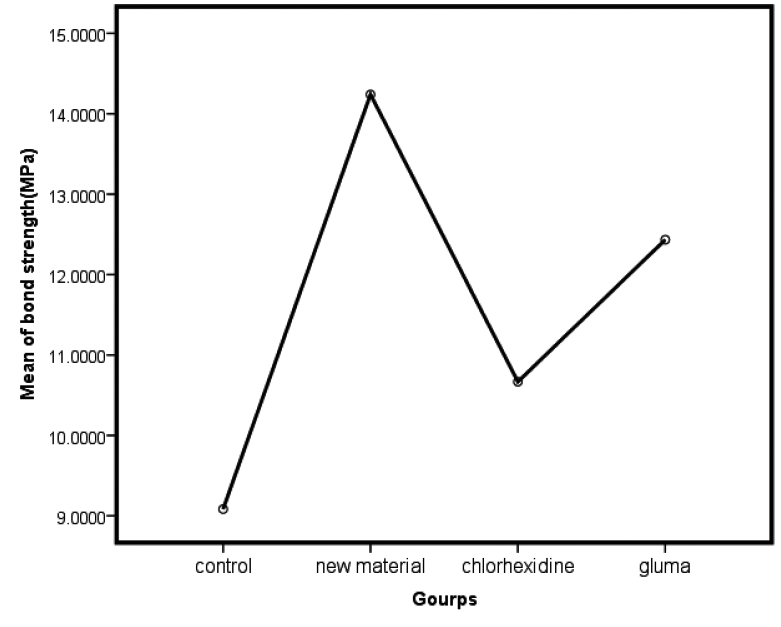

Figure 6. Mean shear bond strength of groups after 6 months

There was no significant difference between mean SBS in the control group with the CHX group (p= 0.445). However, there was a significant difference between the control group and the GD group (p= 0.015). In Table 5, the mean SBS of the samples was compared in term of time of storage.

As seen in the table, the difference in bond strength after 24 hours and 6 months was not significant in the NM and GD group, but was significant in the control group (p= 0.009) and the CHX group (p= 0.036). In all four groups, the mean bond strength was decrease after 6 months. The analysis of type of fracture was performed using Chi-Square Tests and is shown in Table 6. As can be seen, no cohesive fracture was observed in the samples. As far as the type of fracture was concerned, the most frequent type of fracture in all four groups was the mixed type. There was no significant difference in type of fracture among the samples (p= 0.237).

Discussion

Degradation of hybrid layer of adhesion process to dentinal structure can occur over time because of endogenous proteases (MMP) attack. To prevent the effects of these MMPs on hybrid layer, various materials have been recommended, including chlorhexidine, an antimicrobial agent that can inhibit MMP 2, MMP 9, and MMP8. Chlorhexidine has also been reported to inhibit dentin cathepsins [ 3 ]. Another material that can inhibit protease activity is glutaraldehyde. Glutaraldehyde reacts with plasma proteins, such as albumin and causes them to precipitate on dentin surface. These sediments react with HEMA and form a mixture of Poly-HEMA copolymerized with glutaraldehyde-cross- linked-albumin. This deposition causes blockage of dentinal tubules; however, despite the formation of this sediment on the dentin surface, the penetration of adhesive monomers into dentin is accelerated by HEMA [ 13 - 15 ]. Glutaraldehyde has anti-microbial properties. It is also known as a cross-linking agent that can increase the un-cross-linked or mildly cross-linked collagen matrix resistance to enzymatic degradation. The mechanism of this action is to react between the aldehyde groups present in glutaraldehyde and the amine group in lysine and the hydroxy lysine remaining in the collagen. Glutaraldehyde, by improving the mechanical properties of dentin, minimizes bond degradation [ 13 ].

In this study, the effect of these two desensitizer agents together on dentin SBS and durability of bond was investigated. The results of this study showed that the use of chlorhexidine after dentin etching does not have any significant effect on SBS. Shafiei et al. [ 16 ] reported that the use of chlorhexidine prior to applying adhesive onto dentin significantly reduces the SBS. This difference was reported in Ercan et al. [ 17 ] as well as Meiers and Shook [ 18 ], which is inconsistent to the results of our study.

This could be due to the application of different adhesives used. The present study uses an etch-and-rinse adhesive. It has been reported that the type and composition of the adhesive system also affects the bond strength. Many studies have been done on the SBS of etch-and- rinse and self-etch adhesives. Some have reported that etch and rinse systems have a higher SBS [ 19 - 20 ] due to better resin hybridization and better infiltration into the collagen network [ 21 ].

It has also been reported that the use of CHX with self-etch adhesives reduces bond strength due to the limited penetration of adhesive into the dentin [ 1 ]. Zheng et al. [ 22 ] and Nishitani et al. [ 23 ] reported that the use of chlorhexidine with etch-and- rinse adhesives improved bond strength, but not in the self-etch group. Compos et al. [ 24 ] reported that using 2% chlorhexidine would reduce bond strength and concluded that it should not be used before self-etch adhesives. Breschi et al. [ 25 ] reported that the use of chlorhexidine even with low percentages (0.2%) on etched dentin could prevent collagen degradation by up to 12 months.

It has been reported that CHX can inhibit MMPs and reduce the rate of degradation of the resin bond and dentin [ 26 - 28 ]. A study by Brackett et al. [ 10 ] reported that the decomposition of hybrid layer after 6 month in restorations using CHX after the etching process was slower than control restorations. However, CHX does not completely inhibit the degradation of hybrid layer over time [ 10 ], owing the loss of its properties over time [ 29 ].

Another problem affecting bond strength is the type of solution in which CHX is dissolved. Ali et al. [ 30 ] showed that the use of ethanol-based CHX has a negative effect on the bond strength of self-etch adhesives, but water-based CHX provides better bonding durability. The study of Ekambaram et al. [ 31 ] reported that using CHX 2% with ethanol-wet bonding would maintain the bond strength of the dentin after 12 months. Considering the newly made material in the present study, which contains CHX and Gluma in an ethanol solvent, the presence of ethanol might have a positive effect on bond strength.

In the present study, the highest bond strength after aging was observed in the NM group, which was not significant from GD group. Maintaining bond strength after aging in both NM and GD group can be related to the presence of Gluma in their combination. In fact, the results indicate that the use of chlorhexidine and Gluma together in one composition, improves the stability of the bond strength over time.

As previously mentioned, the new substance contains 5% glutaraldehyde and 35% HEMA and 2% chlorhexidine dissolved in ethanol. The use of Gluma facilitates the expansion of the demineralized collagen network and increases surface energy, which facilitates the penetration of resin monomers into the demineralized dentin, thus improving bond strength [ 13 ].

Külünk et al. [ 32 ] reported that use of Gluma desensitizer (Heraeus Kulzer, Hanau, Germany) has positive effect on bond strength of resin cements.

Bedran‐Russo et al. [ 33 ] reported that using glutaraldehyde increases the modulus of elasticity and stiffness of the demineralized dentin, which increases over time and increases in higher concentrations of the substance. On the other hand, increasing the strength of the dentin matrix with crosslinking agents increases the strength and durability of the resin-dentin bond.

Ravikumar et al. [ 34 ] reported that the use of Gluma desensitizer after dentin etching could significantly improve the durability of bond in comparison with dry dentin, but was not statistically significant in comparison with wet dentin despite higher bond strengths. Soeno et al. [ 14 ] reported that the use of Gluma prior to the use of Panavia cement has no effect on bond strength. Sabatini et al. [ 13 ] also reported that the use of Gluma before using these adhesives did not significantly differ from the control group. However, a study by Huh et al. [ 35 ], reported that the use of Gluma prior to the application of ED primer and Panavia cement significantly reduced bond strength compared to the control group. The differences between the results of these studies can be due to the different adhesive used and different etching method, as well as differences in the method of measuring the bond strength.

Many studies have been done with scanning electron microscope (SEM) to determine the type of fracture in the specimens. In most studies, the fracture type was adhesive [ 35 - 36 ].

In this study, the stereomicroscope was used to evaluate the fracture mode and the most fracture type was mixed failure, although differences between groups were not statistically significant.

Conclusion

It can be concluded that the effect of combination of chlorhexidine and Gluma on maintaining the integrity and strength of bond over time is similar to Gluma compound alone and they have better effect than chlorhexidine.

References

1. Dalli M, Ercan E, Zorba YO, İnce B, Şahbaz C, Bahşi E. Effect of 1% chlorhexidine gel on the bonding strength to dentin. J Dent Sci. 2010; 5: 8-13.
2. Li F, Majd H, Weir MD, Arola DD, Xu HH. Inhibition of matrix metalloproteinase activity in human dentin via novel antibacterial monomer. Dent Mate. 2015; 31: 284-92.
3. Sabatini C, Scheffel DL, Scheffel RH, Agee KA, Rouch K, Takahashi M. Inhibition of endogenous human dentin MMPs by Gluma. Dent Mater. 2014; 30: 752-758.
4. Hashimoto M, Ohno H, Kaga M, Endo K, Sano H, Oguchi H. In vivo degradation of resin-dentin bonds in humans over 1 to 3 years. J Dental Res. 2000; 79: 1385-1391.
5. Hosaka K, Tagami J, Nishitani Y, Yoshiyama M, Carrilho M, Tay FR. Effect of wet vs. dry testing on the mechanical properties of hydrophilic self‐etching primer polymers. Eur J Oral Sci. 2007; 115: 239-245.
6. Deng D, Huang X, Huang C, Yang T, Du X, Wang Y. Effects of chlorhexidine on bonding durability of different adhesive systems using a novel thermocycling method. Aust Dent J. 2013; 58: 148-155.
7. André CB, Gomes BPFA, Duque TM, Stipp RN, Chan DCN, Ambrosano GMB. Dentine bond strength and antimicrobial activity evaluation of adhesive systems. J Dent. 2015; 43: 466-475.
8. Hiraishi N, Yiu C, King N, Tay F. Effect of 2% chlorhexidine on dentin microtensile bond strengths and nanoleakage of luting cements. J Dent. 2009; 37: 440-448.
9. Göstemeyer G, Schwendicke F. Inhibition of hybrid layer degradation by cavity pretreatment: meta-and trial sequential analysis. J Dent. 2016; 49: 14-21.
10. Brackett WW, Tay FR, Brackett MG, Dib A, Sword RJ, Pashley DH. The effect of chlorhexidine on dentin hybrid layers in vivo. Oper Dent. 2007; 32:107-11.
11. Tezvergil-Mutluay A, Mutluay M, Agee K, Seseogullari- Dirihan R, Hoshika T, Cadenaro M. Carbodiimide cross-linking inactivates soluble and matrix-bound MMPs, in vitro. J Dent Res. 2012; 91: 192-196.
12. Amaral FL, Colucci V, PALMA‐DIBB RG, Corona SA. Assessment of in vitro methods used to promote adhesive interface degradation: a critical review. J Esthet Restor Dent. 2007; 19: 340-353.
13. Sabatini C, Wu Z. Effect of desensitizing agents on the bond strength of mild and strong self-etching adhesives. Oper Dent. 2015; 40: 548-557.
14. Soeno K, Taira Y, Matsumura H, Atsuta M. Effect of desensitizers on bond strength of adhesive luting agents to dentin. J Oral Rehabil. 2001; 28: 1122-1128.
15. Qin C, Xu J, Zhang Y. Spectroscopic investigation of the function of aqueous 2‐hydroxyethylmethacrylate/ glutaraldehyde solution as a dentin desensitizer. Eur J Oral Sci. 2006; 114: 354-359.
16. Shafiei F, Alikhani A, Alavi AA. Effect of chlorhexidine on bonding durability of two self-etching adhesives with and without antibacterial agent to dentin. Den Res J. 2013; 10: 795-801.
17. Ercan E, Erdemir A, Zorba YO, Eldeniz AU, Dalli M, Ince B. Effect of different cavity disinfectants on shear bond strength of composite resin to dentin. J Adhes Dent. 2009; 11: 343-346.
18. Meiers J, Shook L. Effect of disinfectants on the bond strength of composite to dentin. Am J Dent. 1996; 9: 11-14.
19. Mandava D, Ajitha P, Narayanan LL. Comparative evaluation of tensile bond strengths of total-etch adhesives and self-etch adhesives with single and multiple consecutive applications: An in vitro study. J Conserv Dent. 2009; 12: 55-59.
20. De Munck J, Van Meerbeek B, Yudhira R, Lambrechts P, Vanherle G. Micro‐tensile bond strength of two adhesives to Erbium: YAG‐lased vs. bur‐cut enamel and dentin. Eur J Oral Sci. 2002; 110: 322-329.
21. Van Meerbeek B, De Munck J, Yoshida Y, Inoue S, Vargas M, Vijay P. Adhesion to enamel and dentin: current status and future challenges. Oper Dent. 2003; 28: 215-235.
22. Zheng P, Zaruba M, Attin T, Wiegand A. Effect of different matrix metalloproteinase inhibitors on micro-tensile bond strength of an etch-and-rinse and a self-etching adhesive to dentin. Oper Dent. 2015; 40: 80-86.
23. Nishitani Y, Yoshiyama M, Wadgaonkar B, Breschi L, Mannello F, Mazzoni A. Activation of gelatinolytic/ collagenolytic activity in dentin by self‐etching adhesives. Eur J Oral Sci. 2006; 114:160-6.
24. Campos EAd, Correr GM, Leonardi DP, Pizzatto E, Morais EC. Influence of chlorhexidine concentration on microtensile bond strength of contemporary adhesive systems. Braz Oral Res. 2009; 23: 340-345.
25. Breschi L, Cammelli F, Visintini E, Mazzoni A, Vita F, Carrilho M. Influence of chlorhexidine concentration on the durability of etch-and-rinse dentin bonds: a 12-month in vitro study. J Adhes Dent. 2009; 11: 191-198.
26. Ricci HA, Sanabe ME, de Souza Costa CA, Pashley DH, Hebling J. Chlorhexidine increases the longevity of in vivo resin–dentin bonds. Eur J Oral Sci. 2010; 118: 411-416.
27. Stanislawczuk R, Reis A, Loguercio AD. A 2-year in vitro evaluation of a chlorhexidine-containing acid on the durability of resin–dentin interfaces. J Dent. 2011; 39: 40-47.
28. Carrilho M, Carvalho R, De Goes M, Di Hipolito V, Geraldeli S, Tay FR. Chlorhexidine preserves dentin bond in vitro. J Dent Res. 2007; 86: 90-94.
29. Simões D, Basting R, Amaral F, Turssi C, França F. Influence of chlorhexidine and/or ethanol treatment on bond strength of an etch-and-rinse adhesive to dentin: an in vitro and in situ study. Oper Dent. 2014; 39:64-71.
30. Ali A, El Deeb H, Badran O, Mobarak E. Bond durability of self-etch adhesive to ethanol-based chlorhexidine pretreated dentin after storage in artificial saliva and under intrapulpal pressure simulation. Oper Dent. 2013; 38: 439-446.
31. Ekambaram M, Yiu CKY, Matinlinna JP, King NM, Tay FR. Adjunctive application of chlorhexidine and ethanol-wet bonding on durability of bonds to sound and caries-affected dentine. J Dent. 2014; 42: 709-719.
32. KÜlÜnk Ş, SaraÇ D, KÜlÜnk T, Karakaş Ö. The effects of different desensitizing agents on the shear bond strength of adhesive resin cement to dentin. J Esthet Restor Dent. 2011; 23: 380-387.
33. Bedran‐Russo AKB, Pashley DH, Agee K, Drummond JL, Miescke KJ. Changes in stiffness of demineralized dentin following application of collagen crosslinkers. J Biomed Mater Res B Appl Biomater. 2008; 86:330-334.
34. Ravikumar N, Shankar P, Indira R. Shear bond strengths of two dentin bonding agents with two desensitizers: An in vitro study. J Conserv Dent. 2011; 14: 247-251.
35. Huh JB, Kim JH, Chung MK, Lee Hy, Choi YG, Shim JS. The effect of several dentin desensitizers on shear bond strength of adhesive resin luting cement using self-etching primer. J Dent. 2008; 36: 1025-1032.
36. Dionysopoulos D. Effect of digluconate chlorhexidine on bond strength between dental adhesive systems and dentin: A systematic review. J Conserv Dent. 2016; 19: 11-16.
