Introduction

Long-term survival of implant requires balanced bone remodelling to maintain the bone architecture and osseointegration [ 1 - 2 ]. Bone remodelling occurs by the process of resorption and deposition of bone around the implant, and it begins from the early phase of implant healing [ 3 ]. Osteotomy followed by torquing of the implant in the bone initiates osteoclastic differentiation to remove the dead bone and debris by releasing fibroblast growth factor-2, interleukin-1, interleukin-6 and macrophage colony-stimulating factor [ 4 ]. The osteoclastic activity is followed by the release of growth factors like insulin-like growth factor, platelet-rich fibrin, bone mor-phogen-etic protein (BMP) to promote vascularization and osteogenesis to remodel the peri-implant bone [ 5 ]. The imbalance in the release of bone growth promo-ting cells alters bone remodelling and accelerates the bone loss around dental implants. Hence, the addition of bone growth-promoting factors or bone additives will fasten the bone formation by promoting osteogenesis [ 6 - 7 ].

Grafting with growth-promoting factors or bone substitute materials regenerates the bone through either osteo-induction or osteo-conduction [ 6 ]. The primary choice of bone substitutes were autogenous grafts as it has the ability of osteo-induction, which is differentiation of immature cells to osteoblast [ 7 ]. However, due to limitations in harvesting the autogenous grafts, allografts, xenografts, and alloplasts came into existence [ 6 , 8 ]. Allografts and xenografts have varied host cell acceptance while, the alloplastic graft has only osteo conductive potential (acts as a scaffold) [ 9 ]. Hence, alternative materials were searched for the achievement of osteo-induction without host rejection of the graft that promotes bone cell migration, differentiation, and proliferation to enable bone remodelling [ 10 ].

BMP are growth factors, belonging to the transforming growth factor-β family, induces new bone formation by inducing differentiation of multi-potent cells [ 11 - 12 ]. BMPs were first identified when demineralized lyophilized bone was incorporated in ectopic site induced bone formation, and in 1971, Urist [ 13 ] addressed the role of BMP’s in osteo-induction. Further research succeeded in cloning the genes, which code for BMP [ 14 ]. BMP forms about 1 part per billion of the bone, and were also isolated from demineralized bone matrix, Escherichia coli, osteosarcoma cell line [ 13 , 15 - 16 ]. Though 20 types of BMP were identified, BMP-2, 7, 8 and 9 were proved effective in enhancing osteogenic activity; and BMP 2 and 7 are approved for human use [ 14 , 17 - 18 ].

The influence of BMP in wound healing, repair, and new bone formation is most widely researched in the field of orthopaedics [ 19 ]. In dentistry, the literature reveals that BMP is widely used as a bone augmentation material or an implant surface modifier [ 20 - 21 ]. BMP was delivered as a bone growth additive during the surgical phase of dental implant placement would accelerate the bone remodelling [ 22 ]. BMP per se is efficient in bone regeneration but the use of carriers helps in local delivery and also reduces the concentration of BMP required for its action in the grafted site [ 23 ]. Carriers retain the BMP for a longer duration and allow a sustained release to ensure healing and regeneration completion [ 24 ]. The carriers are selected based on their biodegradability and osteo-inductivity [ 23 - 24 ]. Though the efficacy of BMP in bone regeneration is evident, its effect around the implant region is unclear. Implant commonly made of titanium has the potential to alter cell infiltration. In addition, bone adjoining the dental implant receives functional load and the carrier utilized should have sufficient strength to withstand the force [ 25 ]. Hence, a literature search was carried to identify an appropriate carrier and concentration of BMP that would be effective around the dental implant for bone regeneration during surgical placement. The review involved both animal and human models to identify the newer trends developed in animals, which is still a void in a human clinical trial. This systematic review exclusively evaluated the types of carriers and concentration of BMP in promoting osseointegration when used as a bone growth additive during the surgical phase of implant treatment.

Materials and Method

The systematic review was conducted in accordance with Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA updated October 2015) guidelines and was registered with the PROSPERO international prospective registry for systematic reviews (CRD42020171667). The focus question was established as per the Population, Intervention, Comparison, Outcome format (PICO). Population of the research being intra-oral implant placed in an edentulous site and intervened with BMP. The BMP was comparatively evaluated with a non-BMP group for varied concentration and delivery methods. The outcome of the systematic review was summarised based on the osseointegration.

Eligibility Criteria

Two independent researchers performed the electronic search using Medical Subject Heading (MeSH) keywords for PICO format with a Boolean index of AND between the components. Population involved partially edentulous; Intervention was Bone morphogenetic protein-2 (BMP-2) in various concentrations, carriers; Comparison was no intervention; the Outcome evaluated was an improvement in bone formation and osseointegration. The MeSH keywords for population component were the oral cavity OR edentulous jaw OR jaw, edentulous, partially OR mandible OR alveolus, dental OR jaw OR implant, dental OR immediate dental implant loading OR early dental implant loading that included human and animal model. MeSH keywords for the intervention were Bone morphogenetic protein OR BMP 2 protein, human. The above-mentioned intervention was compared with the keywords; BMP delivery vehicle OR BMP carrier OR BMP concentration OR BMP dose frequency. Finally, the outcome variable evaluated included crestal bone OR peri implantitis OR mucositis, oral OR bone defect OR osseointegration OR implant survival. The keywords ((((Bone Morphogenetic Protein OR BMP 2 OR BMP)) AND (Dental Implant OR Alveolar ridge OR Edentulous Arch)) AND (Crestal bone loss OR Peri-implantitis OR Osseointegration)) AND (BMP carrier OR BMP concentration OR) were used in various combinations to extract the relevant articles.

Information sources

Literature published in the time range of January 2000 to July 2021 was sought after by three independent researchers in the following databases (search engines): Medline (Pubmed), Elsevier (Science Direct), Cochrane (Cochrane library), IndMED, and Embase (OVID). The search for grey literature was carried out in the Opengray database.

Inclusion criteria

The eligibility for inclusion of the articles in the review was considered only when the BMP was used as a bone additive along with surgical placement of an implant in the oral cavity. Only prospective studies involving animal and human models with a minimum follow-up period of six months were included. Implant placement in any other region was not considered in the systematic review. In addition, the review did not include data when BMP was used without placement of the implant or as an implant surface modifier. Experimental comparative study design with intervention for animal experiments was included in the review. To evaluate the highest level of evidence in human research, randomized controlled trials were included. This was conducted to analyse the deficiency in human research and the scope of future research in a clinical trial.

Data collection

The data were extracted by the first author (FB) and filled into a pre-defined form that evaluated the basic characteristics of the study: authors, year of publish, study design, aim and outcome. The data extracted were tabulated chronologically and the data synthesis was based on evidence tables and descriptive summaries (Table 1, Table 2). The second author (SK) checked the information collected, and the third author (AK) settled the disagreement between the authors.

Risk of bias assessment

The “systematic review centre for laboratory animal experimentation (SYRCLE) RoB tool” updated March 2014 assessed the risk of bias for animal studies (Table 3). The bias assessment for randomized controlled trials was performed using “revised Cochrane risk of bias tool for randomized trials (RoB2)” version of 22 August 2019 (Table 4).

Summary measures and data synthesis

The data were summarised based on the type of samples (animal or human), the number of samples and implants, comparisons, follow-up months, type of carrier, the concentration of BMP, the methods of investigation, and outcome measured (Table 2). The outcome of the hypothesis; osseointegration around the dental implant was summarised qualitatively based on the type of bone, mineralization, bone density, bone height, bone-implant contact, and implant stability. Since there was no common outcome or measurement between the collected articles, quantitative measurement was not performed. The inter-rater reliability and kappa statistics were performed for agreement between the authors for the eligibility and inclusion section. The inter-rater reliability for FB and SK, SK and AK, AK and FB were 92.64%, 94.34%, and 94.34% respectively. The inter-rater reliability between the three authors was 93.71%. The kappa analysis of agreement between FB and SK, SK and AK, AK and FB were 0.81, 0.84, and 0.84 respectively suggesting almost perfect agreement.

Results

Study selection

The search yielded 2631 articles (includes 419 Pubmed, 2137 Science Direct, 12 Cochrane, 56 Embase indexed articles, and also included 7 Opengray literature). 735 duplicate articles were filtered out and the remaining 1876 articles were further analysed by the title and the abstract to check their relevancy to the selected hypothesis. This yielded 57 articles, which was further filtered for full-text availability. We found that 16 articles were suitable for qualitative analysis based on the search criteria at the end of structured literature search (Figure 1). The meta-analysis was not performed due to heterogenicity between the selected articles on comparison of the outcome measure, type of carrier and concentration of BMP.

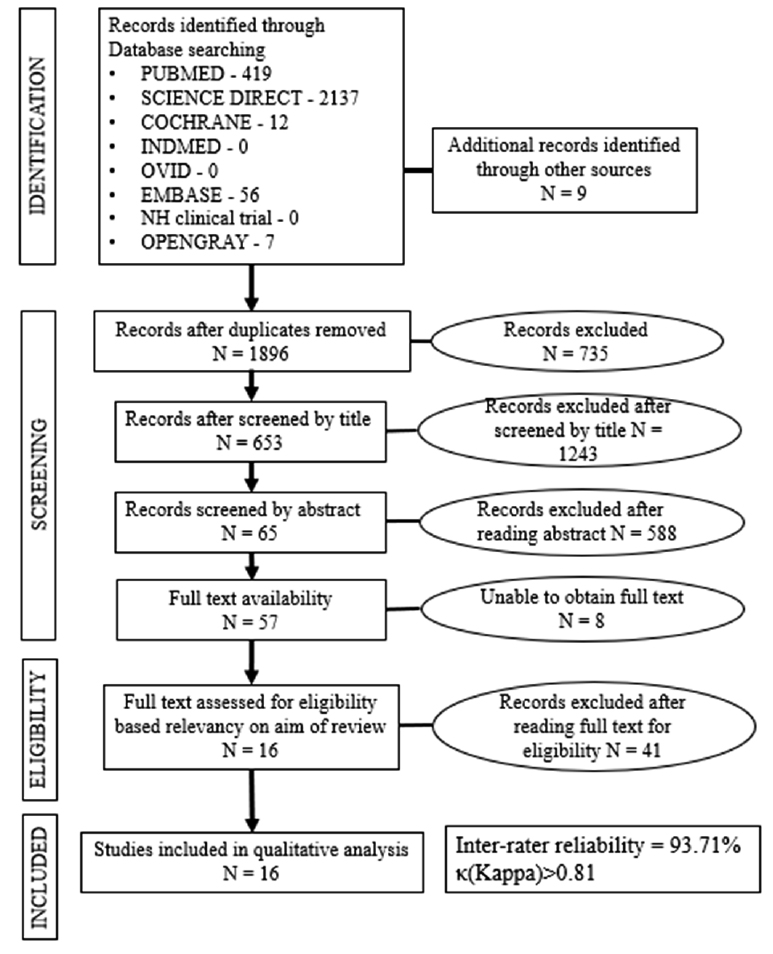

Figure 1.Systematic analysis of literature search

Study characteristics

Based on the study hypothesis; 13 experimental comparative study designs on the animal models, and 3 randomized controlled trial study designs on the human model were selected. The number of implants placed in the oral cavities of animal models was 341 (mean of 31±22.04) with a mean of 32.66±20.68 in 42 canine models across the 6 articles, mean of 24±11.31 in 24 rat models across 2 articles, and mean of 32.33±35.16 in 22 minipigs model across 3 articles. The number of implants in RCT was 88 (mean of 29±8.66) in 32 (mean of 10.67±0.58) human participants across the three articles. The data extracted were tabulated in Table 2.

Qualitative Synthesis of results

Carriers and Concentration of BMP

In the animal model, the delivery of rhBMP-2 around dental implants varied from calcium phosphate derivative, collagen base and poly (D,L-lactide-coglycolic acid) (PLGA) of which the former being the most common carrier. Jaebum Lee et al. [ 26 ] and Huh et al. [ 27 ] coated BMP directly on the implant surface without using any carrier. Jaebum Lee et al., [ 27 ] coated 30 µg of rhBMP-2 by either soak or coronal loading and air-dried the implant surface. Huh et al. [ 28 ], compared two different lower concentrations of 10µg or 20µg of rhBMP-2 coated on implant surface by freeze-drying at -40ºC followed by vacuum drying at +20ºC.

Sustainable action of BMP was achieved by various authors with the use of a suitable delivery vehicle. Fiorelleni et al. [ 29 ] and Matin et al. [ 30 ] utilized methyl cellulose gel and PLGA coated gelatin sponge respectively, however, the quantity of rhBMP-2 dispersed on the peri-implant region was not specified. Various authors utilized hydroxyapatite/tricalcium phosphate (HA/TCP) carrier that could withstand functional load around implants and had an osteoconductive potential to deliver BMP [ 25 , 31 - 35 ]. Among the reviewed articles, Lu SX et al. [ 25 ], utilized a high concentration of 0.8 mg (0.4mg/ml) of BMP on HA/β-TCP (15:85%) in collaboration with the bio-ceramic bulking agent as a carrier to provide a compression-resistant matrix, and compared with 0.2 mg/ml of BMP in absorbable collagen sponges (ACS) carrier. Lyu et al., [ 31 ] utilized 300 µg of rhBMP-2 in HA/β-TCP microspheres, while Chao et al., [ 34 ] evaluated as low as 5, 20, 50µg of rhBMP-2 in HA/β-TCP (60:40 ratio) with collagen composite. Tan et al. [ 33 ] utilized biphasic calcium phosphate (BCP) with a HA/TCP ratio of 62/38 for carrying 0.43mg of BMP-2, however, the total quantity varied according to the defect size. Sun YK et al. [ 36 ] utlized a ACS reinfo-rced with hydroxyapatite as carriers in the concentration of 100µg (0.5mg/ml) BMP. Also, the efficacy of osteoconductive carriers; cryogel bone substitute comprising gelatin-HA/β-TCP with 0.16µg/µl of BMP and gelatin/ HA/β-TCP added to PLGA microspheres with 0.21µg of BMP were compared [ 37 ]. Insoluble collagenous bone matrix (ICBM) with vascular endothelial factor (18.4µg) (VEGF) was used to carry 138µg of BMP-2 [ 32 ]. The lowest concentration of 0.2 µg was tried in an animal study with a calcium phosphate carrier [ 38 ]. In human studies, the BMP carriers used were xenogeneic bone grafts, collagen and HA/ TCP with 0.5mg/ml, 1.5mg/ml, 0.25mg/ml of BMP respectively [ 22 , 39 - 40 ].

Measuring outcome(osseointegration) based on concentration and carriers

The evidence of the efficiency of carriers and varied concentration were available only in animal experiments. Implant stability with a concentration of 10 and 20µg had values of 8 and 11.5 without the use of carriers [ 28 ], whereas an increase of concentration of 20µg and 50µg with HA/βTCP/collagen carrier had established a value of more than 75 [ 34 - 35 ]. Use of concentration less than 20 µg by Smeets et al. [ 38 ], (0.3µg), Huh et al. [ 28 ], (10, 20µg) and Chao et al.[ 34 ], (5, 20, 50µg) did not show significant improvement in osteoconductive potential compared to the control site, wherein the control site was the carrier. The concentration of BMP used in the reviewed articles varied between the range 0.215µg to 0.8mg and the outcome of the studies showed improved bone formation around implants despite the concentration, however, a significant effect was observed when concentration was above 20µg.

The bone density for the coronal and soak-loaded implants were 38 % and 34% respectively without the use of carriers [ 28 ], whereas the density of the peri-implant region with carrier ICBM and ICBM with VEGF increased to 46.1% and 65% respectively [ 2 ], signifying the importance of carrier. The bone-implant contact values without carriers averaged 25.0±3.8% and 31.2±3.3% for the soak loaded and coronal loaded implant [ 26 ], while with the carriers such as ICBM was 38 %, ICBM-VEGF was 49% while with biphasic calcium phosphate and HA/βTCP/Collagen increased to 82% and 60% respectively [ 32 - 34 ], signifying the efficiency of HA/TCP carrier. The bone remodelling was 0.06 mm/ day with the BMP group, while it was 0.01mm/day in the non-BMP group [ 29 ]. The mean bone height and the area were 3.4±0.2mm to 3.5±0.4mm and 2.6±0.4 mm2 to 2.5±0.7mm2 respectively for non-carrier BMP with more lamellar bone in the coronal loaded implant [ 26 ]. Schorn et al., [ 32 ] revealed that with the use of carrier ICBM, the effect of BMP did not show significant change with vertical bone gain until 4 weeks but at 12 weeks the bone gain was achieved at 5.7mm compared to a non-BMP group of 3.1mm. Fiorellini et al. [ 29 ], observed a gain of 1.30±.39mm compared with 0.12± .18mm for a non-BMP group in methycellulose gel base. Whereas, with calcium phosphate carrier the bone gain was minimal with 2.37±.66mm with BMP and 2.25 ±.67mm without BMP [ 38 ]. Two animal experiments compared different carrier systems in promoting the efficiency of BMP. Lu SX et al. [ 25 ] revealed that the bone exhibited significantly increased area (20±-0.9 vs 12±2.6mm2) and density (24±1.4% vs.15±2.0%) around the rhBMP-2/CRM impregnated implant threads when compared with rhBMP-2/ACS. Chang et al. [ 37 ] stated that the gelatin/HA/b-TCP with PLGA microspheres showed generalised osteogenesis and increased mineralisation (51.6) in scanning electron microscope, when compared with gelatin/HA/b-TCP loaded BMP (mineralisation 20.3). The use of ACS as a carrier with rhBMP-2 showed seroma formation around implant when compared with HA/TCP carrier but the seroma decreased from 93% to 33% around the implants in 4 to 8 weeks [ 25 ]. The review of the studies revealed that the HA/TCP combination improved implant Osseo-integrative property of BMP than collagen sponge (ACS) carriers, which was evident through improved bone density, less seroma formation and ability to withstand functional load [ 25 , 31 , 33 - 35 , 37 , 40 ]. The reinforcement of hydroxyapatite carrier enhanced the structural strength of rh-BMP-2/ACS combination [ 25 ]. In addition, histomorphometry analysis proved that the fixation of collagen sponges using pins prevented the dislodgment of a carrier that improved the delivery of BMP at the localized site. The quantity of new bone formation, residual bone substitute, and non-mineralized tissue was 37.03%, 9.51%, 53.46% respectively compared to the group without pins to be 4.87%, 1.31% and

87.16 % respectively [ 36].

Measuring outcome (osseointegration) based on BMP-2 vs non-BMP-2

The animal experiments revealed the efficiency of the BMP group compared with a non-BMP group. Chang et al. [ 37 ] revealed the absence of osteogenesis and reduced mineralization in the non-BMP group at 4 weeks. Lyu et al. [ 31 ], had also observed an insignificant increase in bone gain at 4 weeks, while Schorn et al. [ 32 ] and Chao et al. [ 34 ], also observed the same; they revealed maximum gain with BMP was achieved at 12 weeks and 8 weeks respectively, signifying the time of evaluation for BMP effect. The total augmented bone volume was also lower in the non-BMP group (2.75 mm3) compared with the collagen membrane reinforced BMP group (4.27mm3) [ 36 ]. Use of collagenous bone matrix also showed an increase of 42.1% compared to 2.1% between BMP and non-BMP groups respectively [ 32 ]. Whereas with HA/βTCP/Collagen increase in bone volume density was insignificant, that varied between 50-60% with the highest percent for the BMP group [ 34 ].

Similar trends were also seen in human studies [ 22 , 39 ]. Jung et al. [ 22 ] stated that the new bone formation with rhBMP-2 using xenogeneic bone substitute carrier was a mixed type including randomly arranged fibres of woven bone and the parallel fibre orientation of lamellar bone. This comparative analysis between the xenogeneic bone substitute with rhBMP-2 (test) and without rhBMP-2 (control) revealed that the average bone density was 37% and 30% respectively and mineralized bone (lamellar) were 76% and 56%, respectively in the peri-implant region [ 22 ]. The soft tissue assessment at 3-year follow-up showed less mean probing depths of 2.8mm (buccal sites) to 3.9mm (proximal sites) for the test implant, while 3.1mm (buccal sites) to 4.3mm (proximal sites) for the control implants [ 39 ]. However, comparison of BMP-2 with non-BMP-2 loaded implant revealed varied results depending on the time of analysis in the human model.

Ragheb et al. [ 40 ] revealed that the non-BMP coated titanium implant group (control) had shown higher mean values of bone loss (0.43±0.3mm in control vs 0.39±0.33mm in test) and lower implant stability values (66.96±2.72 in control versus 67.87±2.23 in test) than the BMP coated titanium implant group (test) with a sta-tistically insignificant result at 1-year follow-up. Moreover, a statistically significant change in bone quality between the non-rhBMP-2 and rhBMP-2 groups was observed at 6 months, became statistically insignificant at 5 years, with only a mean change of 0.2mm [ 22 , 36 ]. The carriers and concentration in each of the studies differed and hence meta-analysis was not conducted in this systematic review for quantitative synthesis of the result.

Discussion

BMP-2, an osteo-inductive protein, has the ability to improve bone formation with a property similar to autogenous bone grafting [ 41 - 42 ]. For effective cellular ingrowth and stabilization at the grafted site, the osteo-inductive proteins require a delivery system or a carrier [ 24 ]. The combination of an osteoconductive carrier such as xenogeneic bone substitute with an osteo-inductive protein was effective in improving bone regeneration [ 22 , 39 ]. However, xenogenic bone substitute are antigenically dissimilar to human cells and can induce an immunogenic response [ 43 ]. The biomaterials such as collagen sponges, hydroxyapatite, fibrin, alginate, hyaluronic acid, and synthetic polymers were tried in both orthopaedic and maxillofacial bone augmentation [ 44 - 47 ]. Though collagen is neither osteoconductive nor can withstand the functional load, it is considered one of the best-described carrier materials for the growth factor [ 48 ].

On critical evaluation between the studies, collagen membrane was frequently used as a carrier for BMP. The review revealed that the collagen membrane as a carrier enhanced the osteo-inductivity of BMP-2 in the peri-implant region because of its ability to confine the growth factor in close proximity with the periosteum [ 22 , 32 , 36 , 39 ]. Fixation of collagen membrane with pins prevented mechanical failure, improved its stabilization and the efficiency of BMP-2 [ 36 ]. The use of carriers namely HA/TCP with bio ceramic bulking agent withstood the functional load and promoted the bone regeneration comparable to collagen sponge [ 25 , 37 ]. HA/TCP used in varying ratios modified as bicalcium phosphate was proved to improve the bioactivity and mimics as the natural bone without immunogenic response [ 33 ]. HA/βTCP without BMP and with BMP did not show a significant difference in their bioactivity until 4 weeks in the majority of the research, whereas effective change was observed after 8 weeks [ 32 - 35 ]. Cottam et al.[ 27 ], stated that the carriers were apparently osteoconductive agents and have the probability of inducing infection but the incorporated BMP suppressed the infection. During the initial phase of healing, the seroma (fluid-like collection) formation was observed around the implant coated with BMP, and carriers were evaluated for the possible causative factor in seroma formation [ 25 - 26 ]. Lu et al. [ 25 ] observed that the formation of seroma was less in HA/TCP carrier compared to the collagen sponge. However, the literature reveals that seroma is a dose-dependent sequellae of rhBMP-2-induced bone formation despite the presence of the carrier [ 26 , 45 , 49 ]. The qualitative analysis revealed the HA/TCP was better than collagen to withstand the functional load, reduced seroma formation and comparable to collagen in bone formation.

The BMP concentration available in the human bone was observed to be 1 µg/g of human bone matrix [ 13 ], but the quantity required for bone regeneration was much higher. The concentration of BMP used in the reviewed studies varied from 0.215 µg to 0.8 mg around the dental implant. Lee et al. reported that bone inductive potential of higher concentration of 20 µg BMP did not increase osseointegration compared to a lower concentration of 10 µg BMP on implant surface at 8 weeks without the use of carriers [ 26 , 28 ]. In addition, the researchers who worked independently with much lesser concentration at microgram level (.215µg) also proved the effectiveness of BMP in bone regeneration with the use of carrier HA/βTCP in PLGA [ 37 ]. In contrast researchers with calcium phosphate as a carrier did not find a significant difference at a lower concentration of 2µg of BMP [ 38 ]. Chao et al. [ 34 ], claimed that between 2, 20 and 50µg in HA/βTCP/ Collagen, 50µg of BMP-2 significantly increased the osseointegration. Wikesjö et al. [ 50 ] reported that a high concentration created a radiolucent area around an implant that did not affect the bone formation. They also stated that the immature bone was abundant with higher concentration while the mature bone was observed with lower concentration [ 50 ]. Though rhBMP-2 accelerated the mineralization and maturation of new bone, reports of displacement of implants with higher concentrations cannot be neglected [ 49 - 50 ]. Cowan et al. [ 51 ] suggested the concentration of BMP-2 can be as low as 30ng/mm3 to 240ng/mm3 with the porous PLGA scaffold in bone defects. While Hao-Chieh Chang et al. [ 37 ] used as low as 640ng/mm3 of rhBMP-2 in gelatin/HA/β-TCP cryogel composite to promote osteogenesis in vivo around the dental implant with effective osteogenesis and bone mineralization. Hence, the optimal concentration of rhBMP-2 for successful osseointegration of dental implants also depends on the type of carrier to provide sustainable release.The sustained release of BMP at a minimal concentration in dental implants was achieved with coaxial electrohydrodynamic atomization technique in an animal experiment [ 37 ]. The literature revealed that the coaxial electrohydrodynamic atomization technique controlled the release of BMP-2 by sustained PLGA degradation [ 52 - 53 ]. It incorporates BMP-2 and bovine serum albumin stabilizer in a hydrophilic core that reduced contact with the organic solvent in PLGA shell solution [ 37 ]. The high viscosity nature of the bovine serum albumin stabilizer solution more securely entrapped the BMP-2 into the microspheres, leading to its sustained release [ 31 , 37 ]. The slow diffusion reduced the concentration of rhBMP-2 required within the polymer to enhance the regeneration of bone.

The comparison of BMP-2 with non-BMP-2 implants sites revealed contradictory results in the enhancement of bone formation based on the period of evaluation. BMP did not achieve significant changes in outcome when the evaluation period was more than 6 months for human experiments [ 39 - 40 ]. In addition, the animal experiments that evaluated the efficacy of BMP for less than 4 weeks did not show significant changes denoting the effective bioactivity of BMP initiated after 1 month of delivery. Though implant stability measurement is an indirect measure of osseointegration, the reviewed articles used a less invasive and reliable device, the Ostell Mentor. The qualitative analysis revealed increased stability in presence of BMP-2 compared to the non-BMP-2 group. Enhanced bone regeneration during the initial stage of healing could be due to the rapid release of BMP-2 in the surrounding environment that promoted the signalling pathway by stimulating osteoprogenitor cells in the grafted site [ 54 ]. Moreover, the method of evaluation in the research articles (animal experiment) was histological or histochemical analysis during the initial period of healing, which revealed the microscopic changes in the bone due to BMP. However, the BMP-2 that initially enhanced the extracellular matrix with the formation of woven trabecular bone and then remodelled to the lamellar bone, had taken a longer period for completing mineralization [ 20 ]. This could be the reason behind an insignificant change in radiographic evaluation taken after 6 months of implant placement.

This systematic review enumerated the outcome of the BMP around the dental implant as an additive material incorporated during the surgical phase based on its concentration, type of carrier, and the time of assessment. The trends in animal researches were also searched in human studies with the highest level of evidence. The review also revealed that the updated research done in animal model is still lacking in human research (randomised controlled trial). A limitation of the review was inclusion of both human and animal study designs due to the availability of limited and heterogenous research articles based on focus question. Moreover, the efficacy of BMP as an alternative to graft material around the dental implant in human participants was minimal in randomised controlled trial. The qualitative analysis revealed voids in this field of human research, and we have put forth a few scopes for future research with BMP as follows. First, long-term research on the human model should assess the osseointegration of dental implants based on different carrier systems and varied concentrations of BMP-2. Second, research on biodegradable carriers like PLGA that provides sustained release of BMP without mechanical failure on a human model should be performed. Third, the possible role of BMP in the prevention of osteoclastic activity around dental implants using immunohistochemistry and bone scintigraphy should be investigated. A randomized control trial to evaluate the above criteria would be more beneficial to the clinician and researchers.

Conclusion

The conclusion of this systematic review is based on minimal literature availability and further researches on analysing sustained, local delivery of BMP as an alternative to bone graft material with long-term follow-up around the dental implant in the human model would add strength to the available literature evidence. Qualitative analysis revealed BMP was effective in accelerating bone growth during the initial stages of healing in the human model, and with the carriers namely; collagen sponge, HA/βTCP, HA/βTCP/Collagen, biphasic calcium phosphate, ICBM and the PLGA in HA/TCP. The osteo- inductive potential of rhBMP-2 is enhanced in the presence of a compatible carrier material at even lower concentrations. Among the carriers, animal experiments revealed HA/TCP had higher strength in withstanding functional load at a lower concentration of 50µg, while PLGA microspheres with gelatin/HA/TCP carrier had better osteogenic and mineralisation potential when delivering BMP of lower concentration of .215µg around the dental implant.
